Viewing General HBA Port Information

Perform the following steps to view general information about an HBA port:

1. In the SANsurfer iSCSI HBA Manager main window HBA tree, select the HBA port.
2. Select the Port Information tab. The Port Information tabbed page displays (see the illustration below).

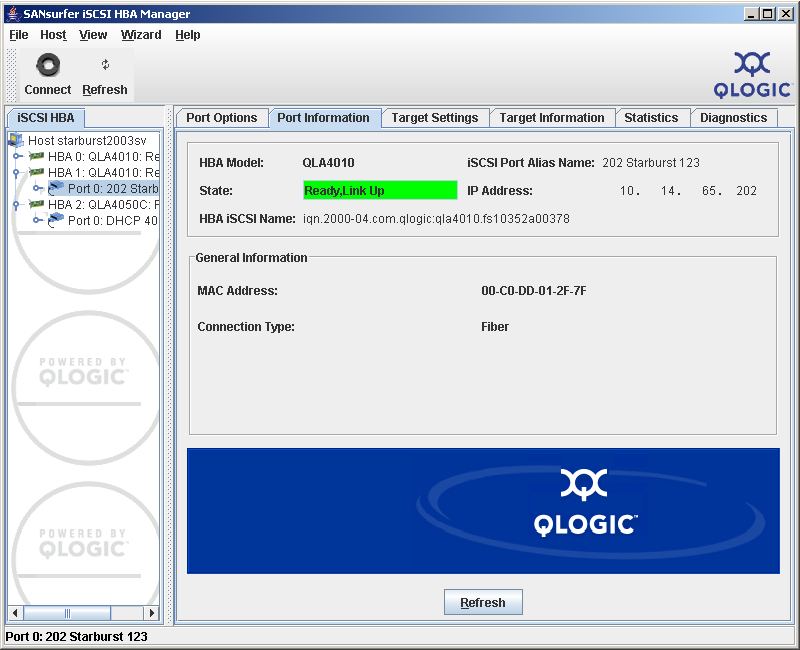

HBA Information Tabbed Page

The HBA port identifying information displays:

• HBA. HBA instance number and HBA model
• State. The HBA port state. See Monitoring the HBA Port State for details about the HBA port state and its correspondence with the HBA icons.

1. Green background: good
2. Yellow background: warning
3. Blue background: unknown
4. Red background: bad

• HBA iSCSI Name. HBA port iSCSI name. The QLogic manufacturing default name or a name that you assign.
• iSCSI Port Alias Name. HBA port iSCSI alias name. Symbolic name you assign to the HBA port for identification purposes.
• IP Address. IP address of the HBA port

The general information displays:

• MAC Address. The MAC address of the HBA port
• Connection Type. Type of HBA port connector
